Europlus Three-hole basin mixer 1/2″ S-Size
Product Number
20301000
EAN
4005176896422
Colour
chrome
Product main features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- GROHE FastFixation installation system with centering support
- spout with mousseur
- pop-up waste set 1 1/4"
- pressure-proof flexible connection hoses between spout and side valves
- union nut with 10.5 mm drilling
Technical Product Information
CAD Data

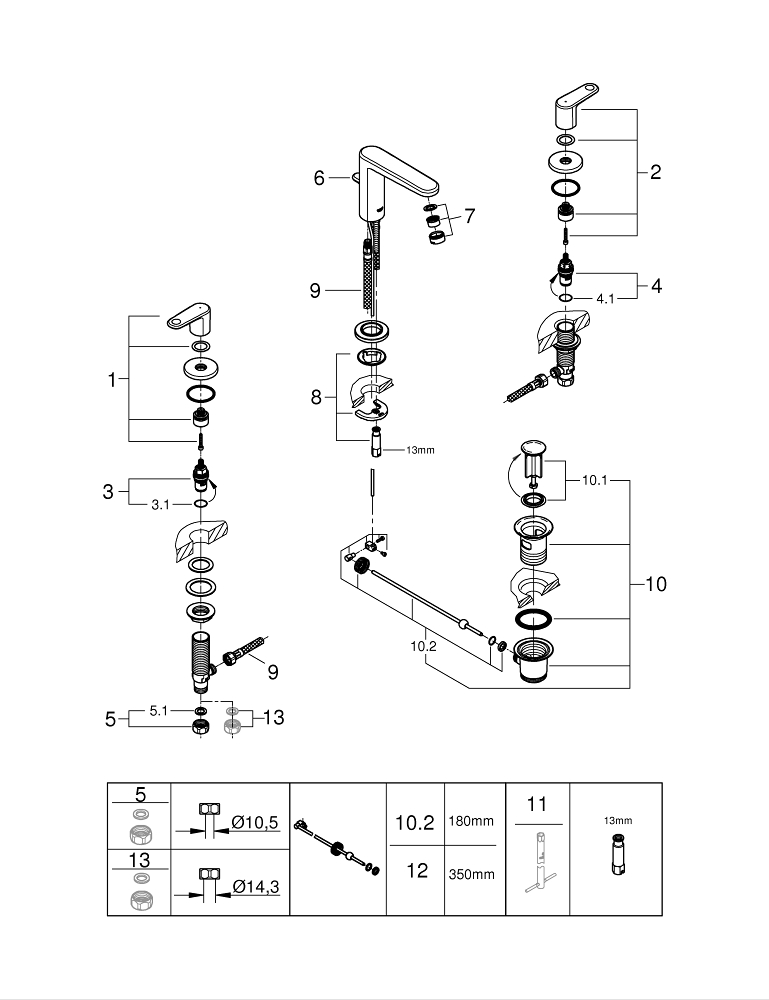

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Handle red | 48107000 |
| 2 | Handle blue | 48108000 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Coupling nut 1/2" | 1290100M |
| 5.1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 6 | Pop-up rod | 64304000 |
| 7 | Mousseur | 13929000 |
| 8 | Shank mounting kit | 46671000 |
| 9 | Connection hose | 46255000 |
| 10 | Waste set 1 1/4" | 28910000 |
| 10.1 | Plug | 07182000 |
| 10.2 | Eccentric rod | 07052000 |
| 11 | Mounting wrench | 19017000* |
| 12 | Eccentric rod | 07341000* |
| 13 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
