Europlus Single-lever shower mixer 1/2″
Product Number
33577001
EAN
4005176827952
Colour
chrome
Product main features
- wall mounted
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- shower bottom outlet 1/2" with integrated non return valve
- covered S-unions with wall sealing
- optional temperature limiter ref. no. 46 375
- protected against backflow
- noise classification I in accordance with DIN 4109
Technical Product Information
CAD Data

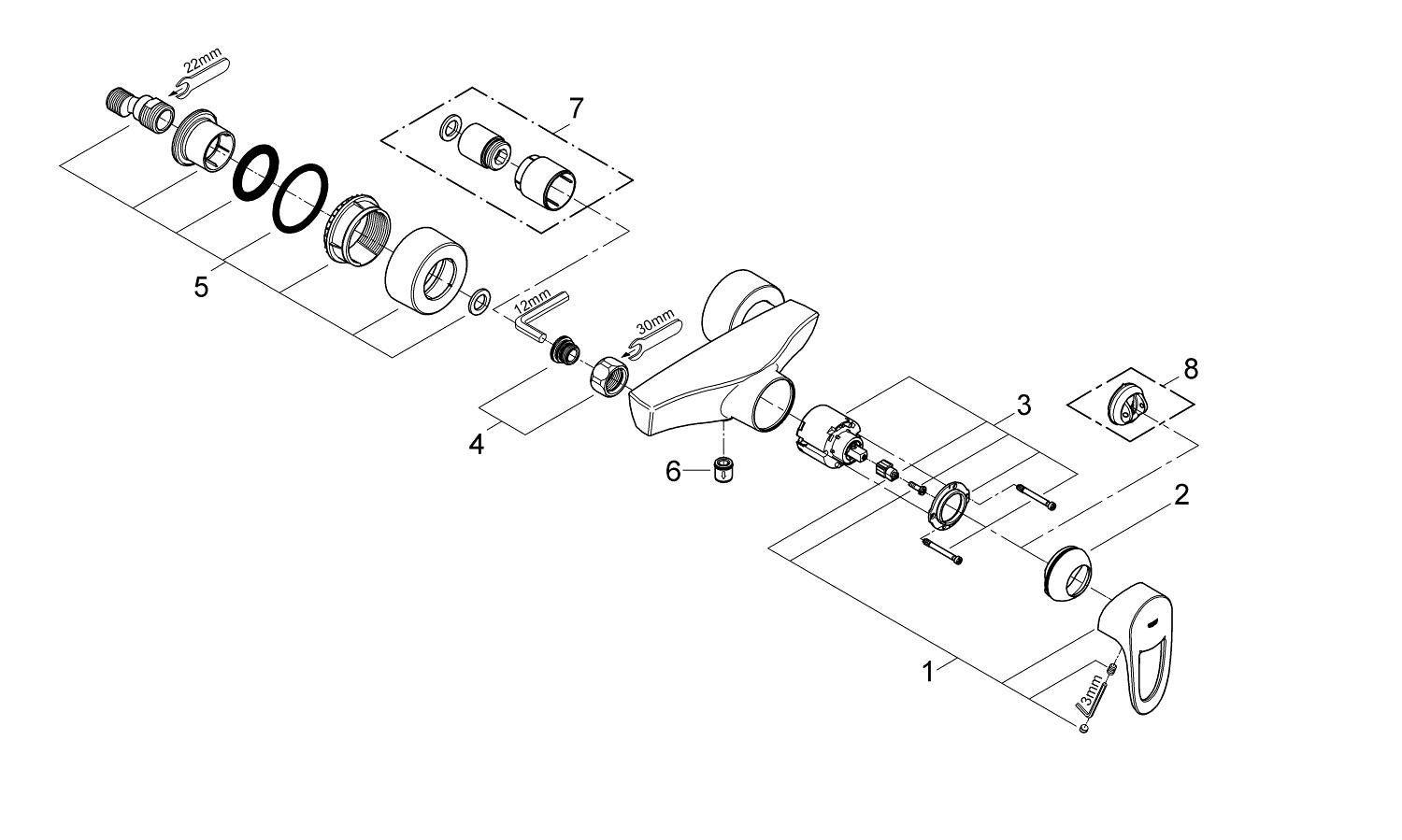

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46569000 |
| 2 | Cap | 46570000 |
| 3 | Cartridge | 46048000 |
| 4 | Screw connection 1/2" | 45044000 |
| 5 | S-union | 12693000 |
| 6 | Non-return valve | 08565000 |
| 7 | Extension set, 30 mm | 46238000* |
| 8 | Temperature limiter | 46375000* |
