Eurodisc Single-lever bath mixer 1/2″

Product Description

• pillar installation
• metal lever
• GROHE SilkMove 46 mm ceramic cartridge
• adjustable flow rate limiter
• adjustable minimum flow rate approx. 2.5 l/min
• automatic diverter: bath/shower
• integrated non-return valve in the shower outlet 1/2"
• mousseur
• pillar unions
• optional temperature limiter ref. no. 46 375
• GROHE Long-Life finish

Technical Information

• Dimensional Drawing

CAD Data

• 2D DWG-Data
• 2D DXF-Data
• 3D DXF-Data

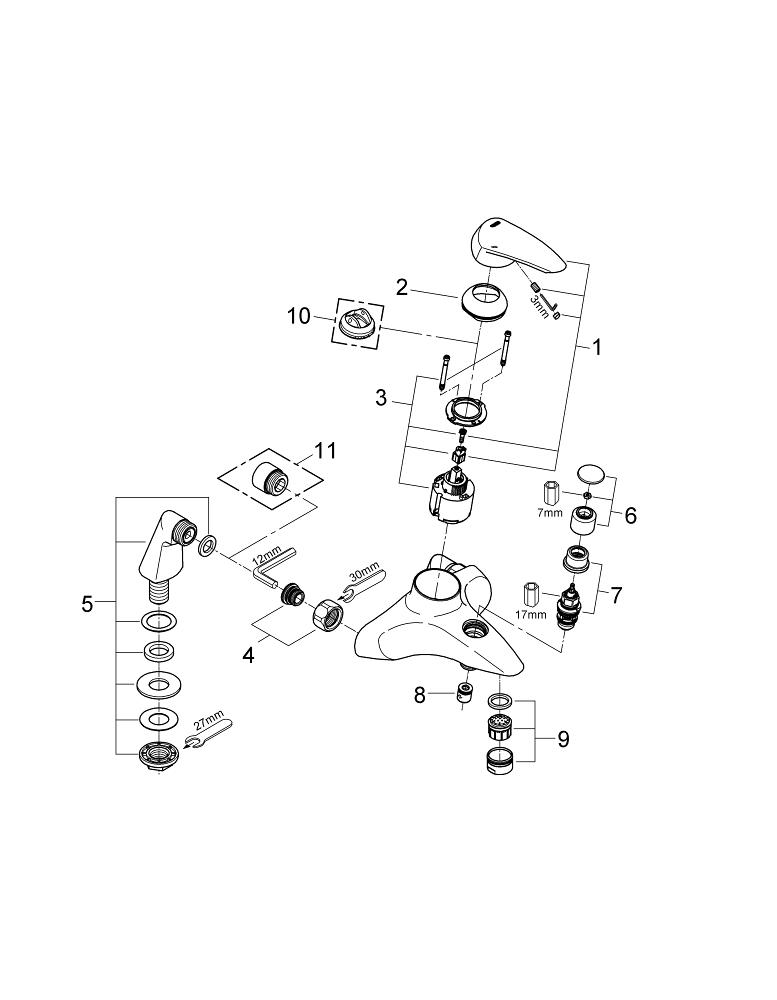

Spare Parts

Pos.-nr.	Prod. description	Order-nr.
* Optional accessories
1	Lever	46568000
2	Cap	46570000
3	Cartridge	46048000
4	Screw connection 1/2"	45044000
5	Pillar union 1/2"	12030000
6	Diverter knob	46571000
7	Diverter	08915000
8	Non-return valve	08565000
9	Mousseur	13927000
10	Temperature limiter	46375000*
11	Extension 3/4", 20 mm	0713000M*
