Eurocube Three-hole basin mixer S-Size
Product Number
2037000A
EAN
4005176346903
Colour
chrome
Product main features
- metal lever
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- GROHE FastFixation Plus installation system
- spout with mousseur
- pop-up waste set 1"
- pressure-proof flexible connection hoses between spout and side valves
- union nut 1/2" x 10.5 mm
- max. flow rate 4.5 l/min (1.2 gpm)
Technical Product Information
CAD Data

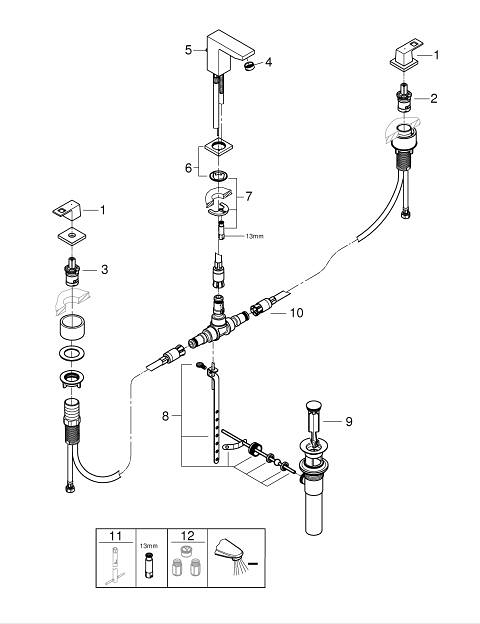

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Eurocube handle red | 48137000 |
| 2 | Eurocube handle blue | 48138000 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Mousseur | 48280000 |
| 6 | Pop-up rod | 46787000 |
| 8 | Shank mounting kit | 46671000 |
| 9 | Connection hose | 46322000 |
| 10 | Mounting wrench | 19017000* |
| 11 | Coupling nut 1/2" | 1290100M* |
| 12 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
