Euphoria System 180 Shower system with bath thermostat for wall mounting

Euphoria System 180 Shower system with bath thermostat for wall mounting

Product Number
26177000
EAN
4005176304866
Colour
chrome
Download specs

Product main features

  • consisting of:
  • horizontal swivable 450 mm shower arm
  • exposed thermostat with Aquadimmer function
  • allows change between:
  • head shower 1 spray (27 492)
  • Rain
  • chrome plated spray face
  • with ball joint
  • rotation angle ± 15°
  • bath inlet
  • separate diverter for hand shower
  • hand shower 2 sprays (27 238)
  • Rain, SmartRain
  • adjustable in height with gliding element
  • metal shower hose 1750 mm (28 025)
  • GROHE Water Saving 9.5 l/min flow limiter
  • GROHE CoolTouch
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE DreamSpray perfect flow
  • GROHE SprayDimmer
  • GROHE Long-Life finish
  • SpeedClean anti-limescale system
  • Inner WaterGuide for a longer life
  • rotation cone for TwistStop-function
  • suitable for instantaneous heaters from 18 kW/h
  • wall installation
  • includes manual tub/shower diverter
  • 6 5/8” tub spout reach
  • protected against backflow

Technical Product Information

CAD Data

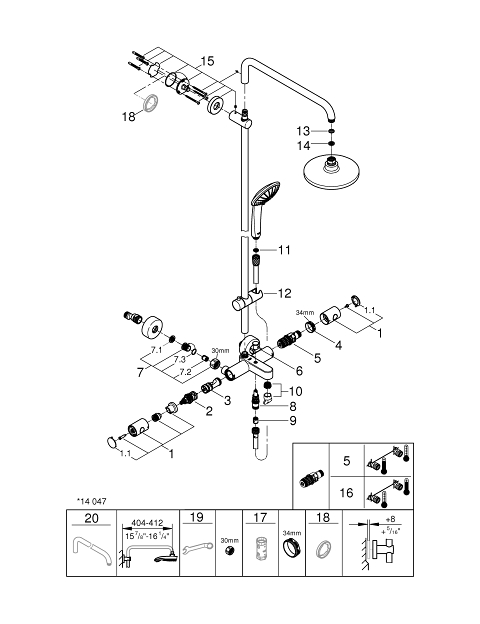

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Metal handle 1/2" 47984000
1.1 Cover cap 6458500M
2 Aquadimmer 47364000
3 Water flow 47887000
4 Fitting ring 47743000
5 Thermostatic compact cartridge 1/2" 47885000
6 Diverter knob 65648000
7 Non-return valve 47189000
7.1 Dirt strainer 0726400M
7.2 Non-return valve 08565000
7.3 O-ring ø 17 x ø 2 0305500M
8 Diverter 65655000
9 Non-return valve 08565000
10 Mousseur 13926000
11 Dirt strainer 0700200M
12 Glide element 12140000
13 Fibre seal Ø 18,5 x Ø 12 x 2 0138900M
14 Dirt strainer 48007000
15 Shower rail holder 48279000
16 GROHE TurboStat cartridge 1/2" 47175000*
17 Socket spanner 19332000*
18 Compensation disc 27180000*
19 Special spanner 19377000*
20 Shower arm for shower systems 14047000*
