Euphoria System 310 Shower system with thermostatic mixer for wall mounting
Product Number
26075AL0
EAN
4005176425370
Colour
brushed hard graphite
Designer style meets showering luxury – the GROHE Euphoria XXL thermostatic shower system with 3-spray hand shower in Brushed Hard Graphite
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- allows change between:
- Rainshower Cosmopolitan 310 metal head shower
- spray pattern: Rain
- maximum flow rate (at 3 bar): 13.5 l/min
- with ball joint
- rotation angle ± 15°
- hand shower Euphoria 110 Massage
- 3 spray patterns:
- Rain, Massage, SmartRain
- maximum flow rate (at 3 bar): 11.5 l/min
- adjustable in height with gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE MetalGrip ergonomically shaped metal handles
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- GROHE SprayDimmer (stepless flow rate reduction)
- Inner WaterGuide for a longer life
- SpeedClean anti-limescale system
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
- optional upgrade: GROHE EasyReach tray (26 362), sold separately
Technical Product Information
CAD Data

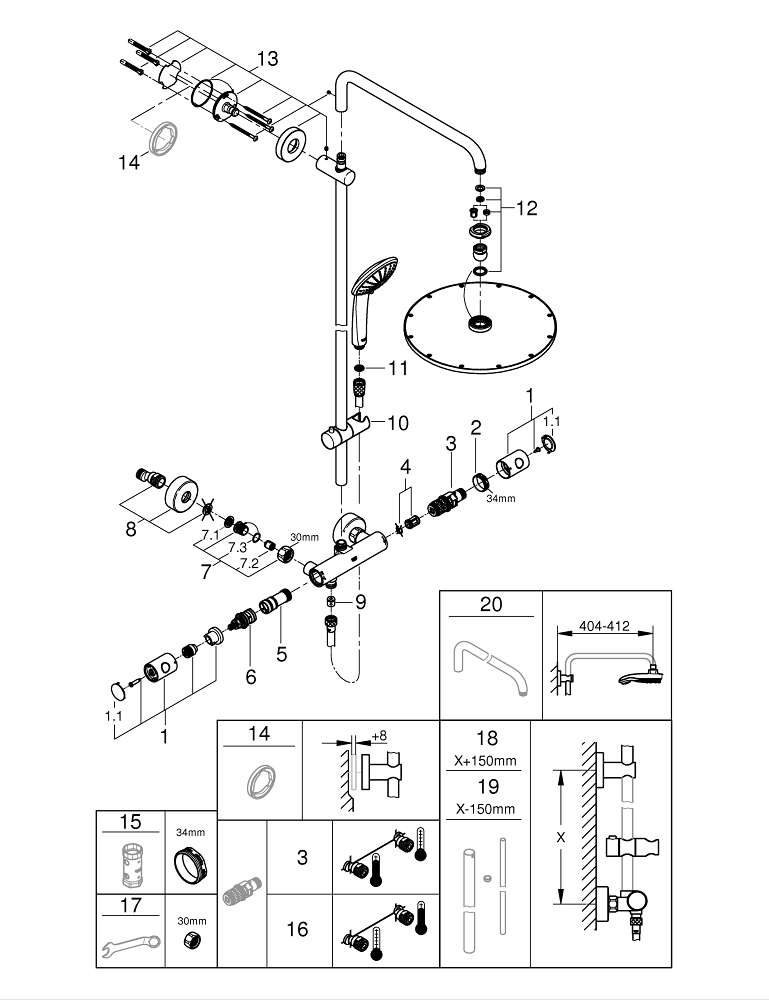

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Metal handle 1/2" | 47984AL0 |
| 2 | Fitting ring | 47743000 |
| 3 | Thermostatic compact cartridge 1/2" | 47439000 |
| 4 | Buffer | 47398000 |
| 5 | Water flow | 47751000 |
| 6 | Aquadimmer | 12433000 |
| 7 | Non-return valve | 47189AL0 |
| 7.1 | Dirt strainer | 0726400M |
| 7.2 | Non-return valve | 08565000 |
| 7.3 | O-ring ø 17 x ø 2 | 0305500M |
| 8 | S-union | 12662AL0 |
| 9 | Non-return valve | 08565000 |
| 10 | Glide element | 12140AL0 |
| 11 | Dirt strainer | 0700200M |
| 12 | Spare part set | 45933000 |
| 13 | Shower rail holder | 48279AL0 |
| 15 | Socket spanner | 19332000* |
| 16 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 17 | Special spanner | 19377000* |
