Euphoria SmartControl System 310 Duo Shower system with thermostat for wall mounting
Product Number
26507A00
EAN
4005176557415
Colour
hard graphite
GROHE Euphoria SmartControl 310 Shower system – high-end performance and precision control in a stylish package
Product main features
- consisting of:
- horizontal 450 mm shower arm
- upper bracket adjustable for minimal adaption to existing drilling holes
- exposed SmartControl thermostat
- allows change between:
- head shower Rainshower SmartActive 310
- 2 spray patterns:
- GROHE PureRain, ActiveRain
- maximum flow rate (at 3 bar): 20 l/min
- hand shower Euphoria 110 Massage, spray plate white
- 3 spray patterns:
- Rain, SmartRain, Massage
- maximum flow rate (at 3 bar): 16 l/min
- adjustable in height with gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- GROHE CoolTouch no risk of scalding
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE ProGrip with knurl structure
- GROHE SafeStop at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
- integrated GROHE EasyReach shower tray
- SpeedClean anti-limescale system
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
Technical Product Information

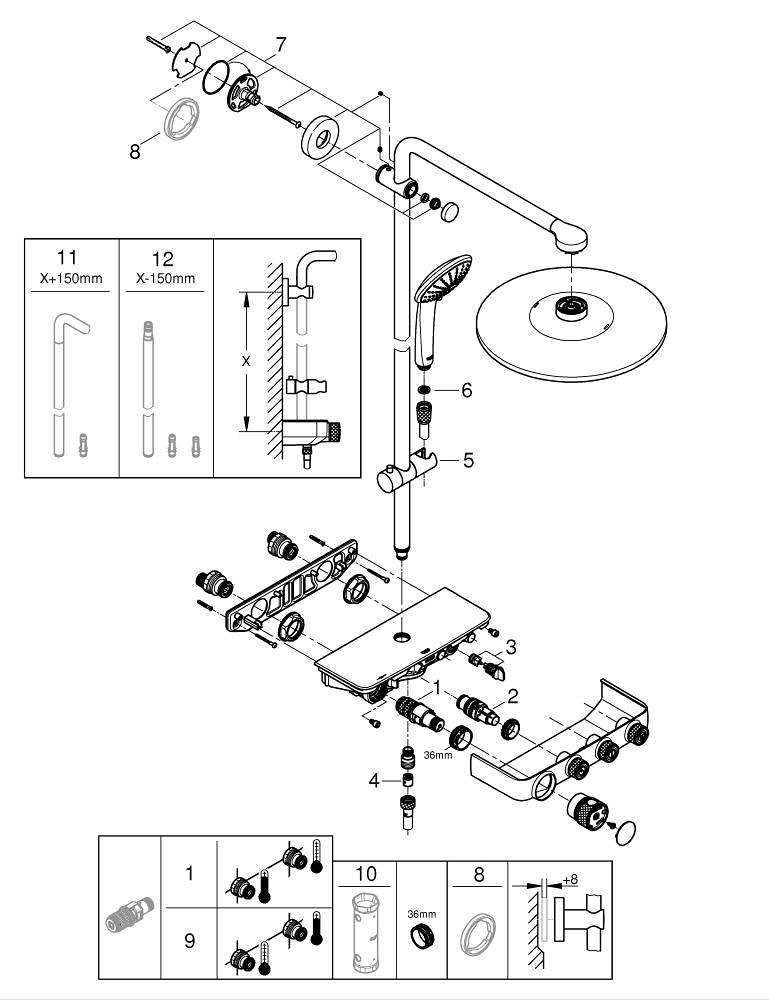

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Thermostatic compact cartridge 1/2" | 47439000 |
| 2 | Cartridge | 48297000 |
| 3 | Non-return valve | 49069000 |
| 4 | Non-return valve | 08565000 |
| 5 | holder for sliding rail | 48177A00 |
| 6 | Dirt strainer | 0700200M |
| 7 | Shower rail holder | 48279A00 |
| 9 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 10 | Socket spanner | 49059000* |
