Essence Single-lever bath mixer 1/2″
Product Number
33624AL1
EAN
4005176426438
Colour
brushed hard graphite
Product main features
- wall mounted
- metal lever
- GROHE SilkMove 35 mm ceramic cartridge
- with temperature limiter
- GROHE Long-Life finish
- automatic diverter: bath/shower
- mousseur
- shower outlet 1/2"
- integrated non-return valve
- S-unions
- protected against backflow
- min. recommended pressure 1.0 bar
Technical Product Information

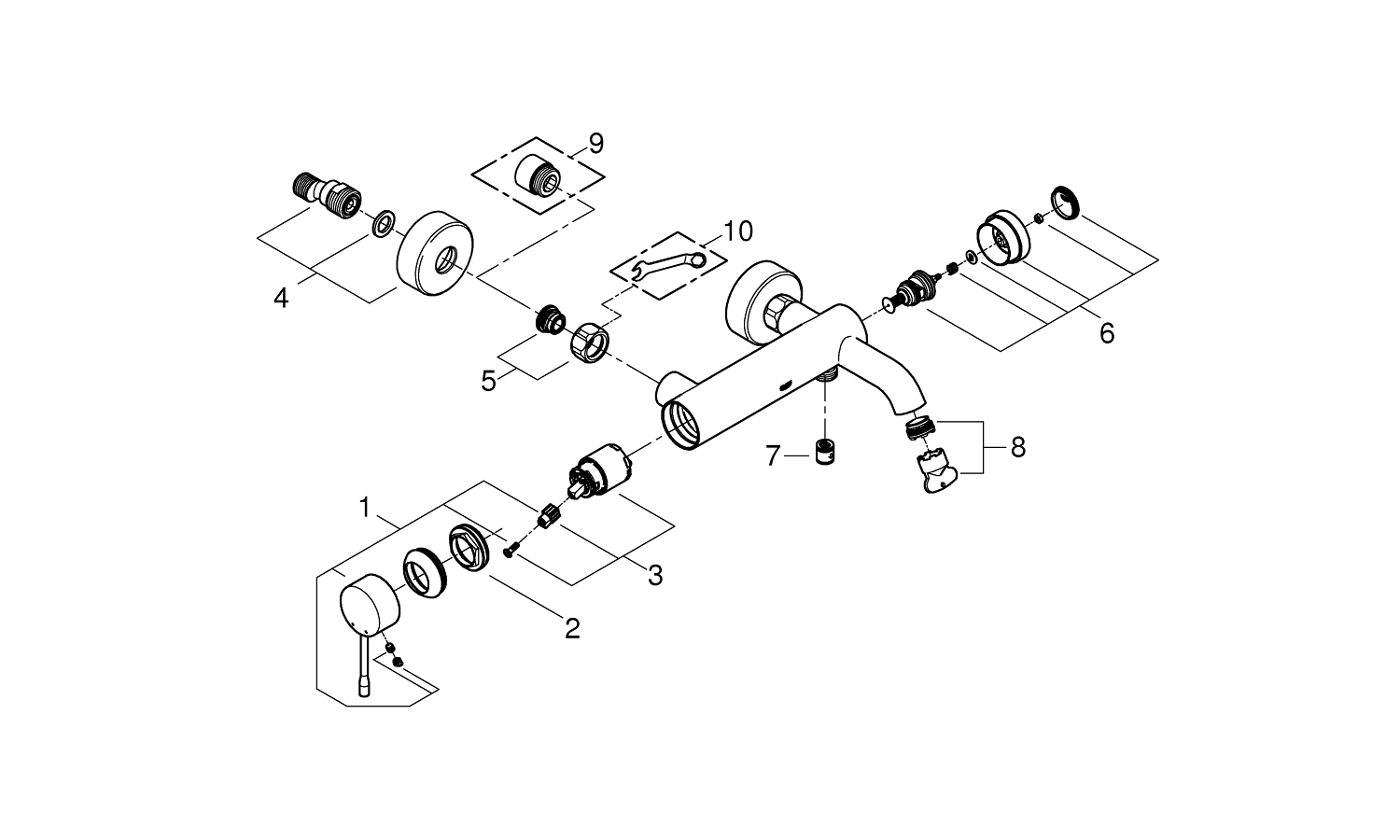

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46916AL0 |
| 2 | Screw coupling | 46460000 |
| 3 | Cartridge | 46374000 |
| 4 | S-union | 12662AL0 |
| 5 | Screw connection 1/2" | 45044AL0 |
| 6 | Diverter | 46920AL0 |
| 7 | Non-return valve | 08565000 |
| 8 | Mousseur | 13926000 |
| 9 | Extension 3/4", 20 mm | 0713000M* |
| 10 | Special spanner | 19377000* |
