Essence Single-lever basin mixer 1/2″ M-Size
Product Number
23463001
EAN
4005176306914
Colour
chrome
Product main features
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- with temperature limiter
- GROHE Long-Life finish
- GROHE Water Saving mousseur 5.7 l/min
- GROHE AquaGuide adjustable mousseur
- GROHE FastFixation Plus installation system
- swivel spout with mousseur and stop limiter
- smooth body
- flexible connection hoses
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

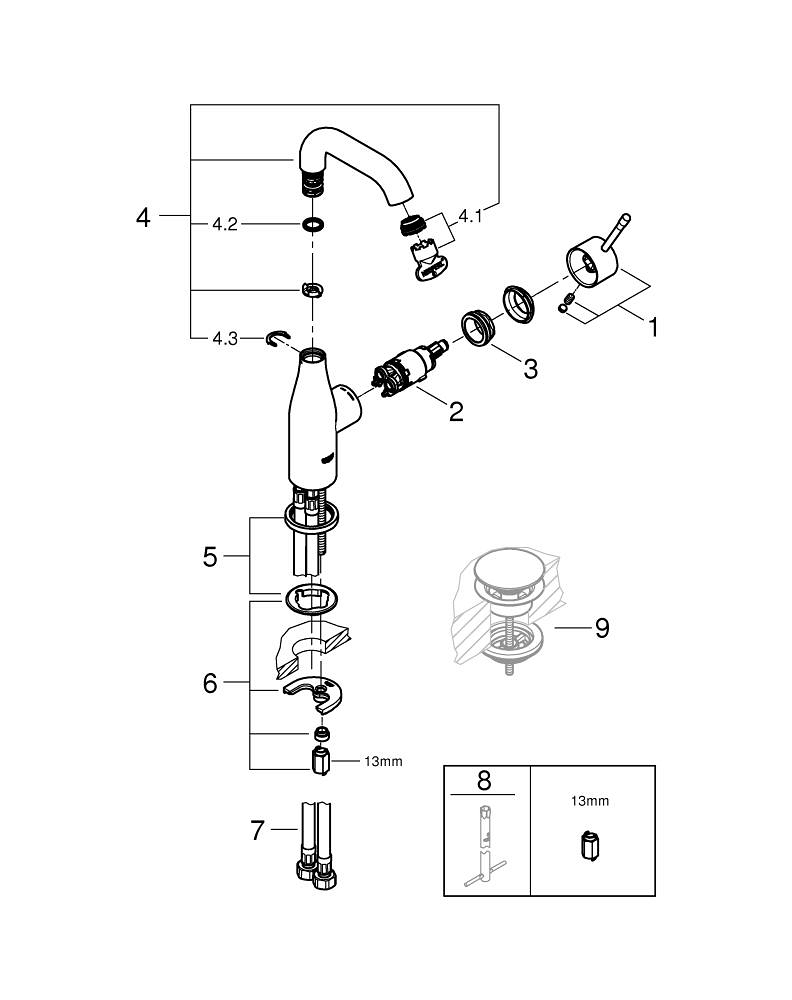

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46919000 |
| 2 | Cartridge | 46580000 |
| 3 | screw ring | 48591000 |
| 4 | Tubular spout | 13373000 |
| 4.1 | Mousseur | 48270000 |
| 4.2 | Sealing washer | 0128500M |
| 4.3 | Safety ring | 4826600M |
| 5 | Escutcheon | 48603000 |
| 6 | Shank mounting kit | 46645000 |
| 7 | Connection hose | 46255000 |
| 8 | Mounting wrench | 19017000* |
| 9 | Waste set with push-open plug | 65807000* |
