Essence Four-hole single-lever bath combination
Product Number
19578EN1
EAN
4005176374463
Colour
brushed nickel
Stylish design and premium performance – the water-saving GROHE Essence Single-lever 4-hole bath filler in Brushed Nickel
Product main features
- GROHE SilkMove 35 mm ceramic cartridge
- with temperature limiter
- GROHE Long-Life finish
- consisting of:
- pre-assembled spout fixing
- single lever mixer operating element
- metal lever
- bath inlet with mousseur
- diverter bath/shower
- metal stick hand shower
- metal shower hose 2000 mm (always chrome for any colour of the set)
- flexible connection hoses
- connection for shower hose
- protected against backflow
- for use with 29 037 000
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

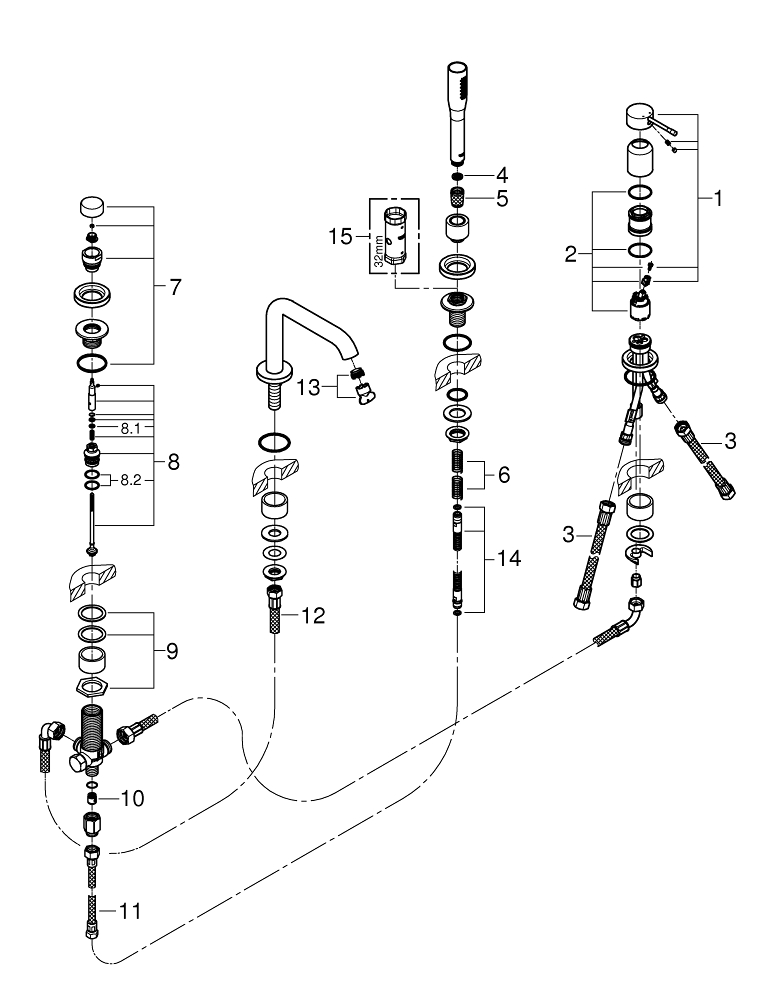

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46916EN0 |
| 2 | Cartridge | 46374000 |
| 3 | Connecting hose | 07227000 |
| 4 | Dirt strainer | 0700200M |
| 5 | Cone nut | 08864EN0 |
| 6 | Compression spring | 00869000 |
| 7 | Diverter knob | 46721EN0 |
| 8 | Diverter | 45443000 |
| 8.1 | Sealing washer Ø 6 x Ø 2 | 0128300M |
| 8.2 | Sealing washer | 0120500M |
| 9 | Replacement kit for shank fastening | 45444000 |
| 10 | Non-return valve | 08565000 |
| 11 | Connecting hose | 07300000 |
| 12 | Connecting hose | 48018000 |
| 13 | Mousseur | 13926000 |
| 14 | Metal shower hose | 28146000 |
| 15 | Socket spanner | 19332000* |
