BauMetric Four-hole single-lever bath combination
Product Number
25139000
EAN
4005176907340
Colour
chrome
Product main features
- consisting of:
- GROHE SilkMove 46 mm ceramic cartridge
- metal lever
- bath spout with manual diverter bath/shower
- hand shower Euphoria Cube Stick (27 699)
- metal shower hose 2000 mm (48 018)
- flexible connection hoses
- protected against backflow
- GROHE Long-Life finish
Technical Product Information

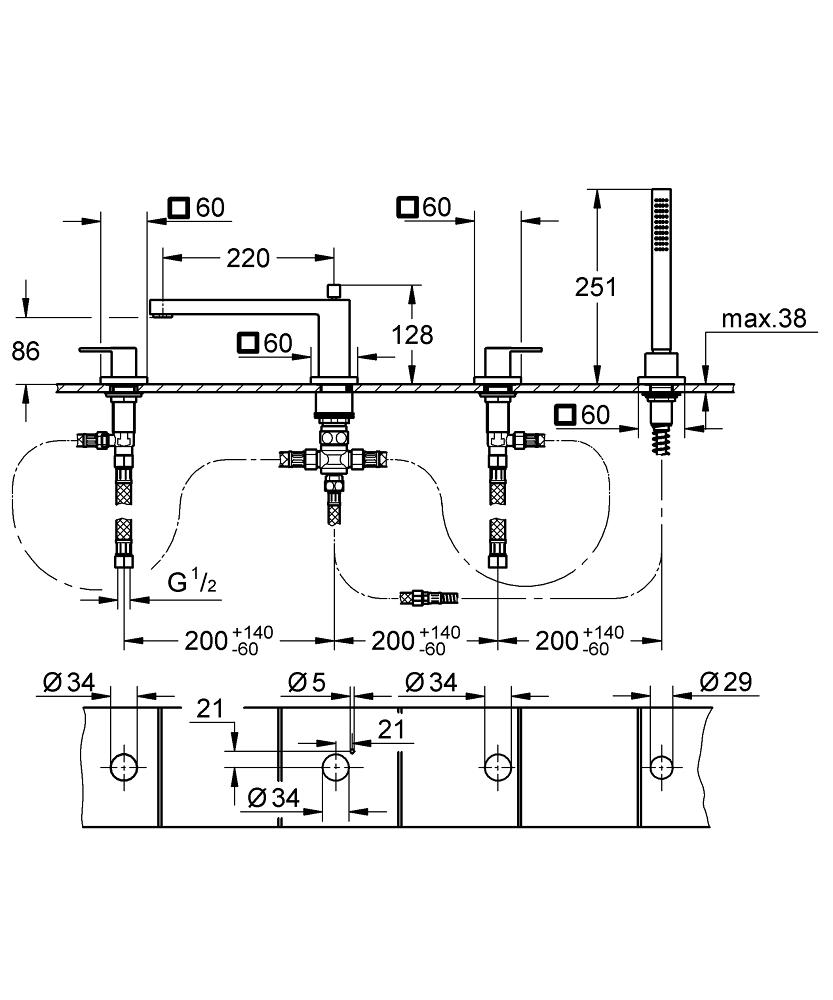

CAD Data

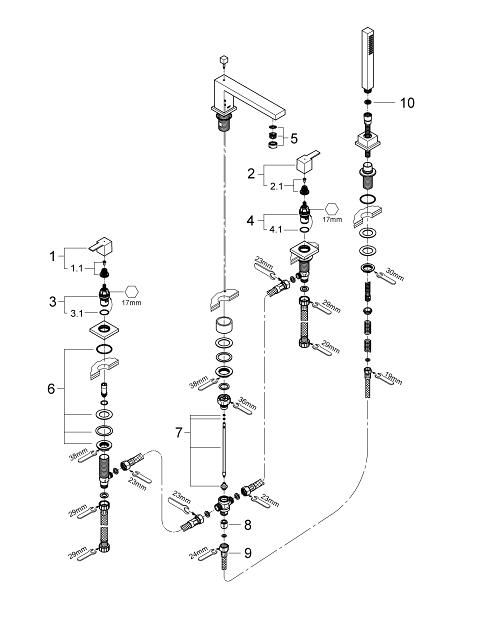

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | BauMetric handle red | 48161000 |
| 1.1 | Replacement handle connection kit | 45186000 |
| 1.1.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 2 | BauMetric handle blue | 48162000 |
| 2.1 | Replacement handle connection kit | 45186000 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Mousseur | 13952000 |
| 6 | Counter screws M28 x 1.5 | 45025000 |
| 7 | Diverter | 45470000 |
| 7.1 | Non-return valve | 08565000 |
| 8 | Non-return valve | 08565000 |
| 9 | Connecting hose | 07300000 |
| 10 | Dirt strainer | 0700200M |
