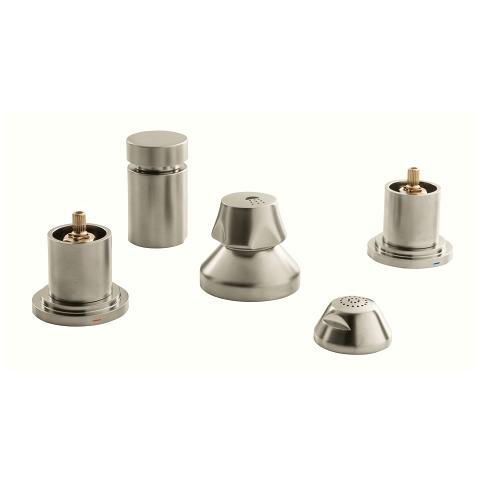

Atrio Three-hole bidet mixer M-Size
Product Number
24016EN0
EAN
4005176818363
Colour
brushed nickel
Product main features
- GROHE Long-Life finish
- diverter: rim flush/bidet spray
- without handles
- Trio spoke handles 18 026 000 & 18 026 EN0 (sold separately)
- Atrio lever handles 18 027 000 & 18 027 EN0 (sold separately)
- check installation compatibility with bidet fixture
- less handles – order (18 026) or (18 027) (sold separately)
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Replacement handle connection kit | 45605000 |
| 2 | Sleeve | 08124EN0 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Escutcheon | 45630EN0 |
| 6 | Counter screws M28 x 1.5 | 45025000 |
| 7 | Coupling nut 1/2" x 14.5 mm | 1290200M |
| 7.1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 8 | Seal kit | 45027000 |
| 9 | Waste fitting | 28957EN0 |
| 9.1 | Plug | 45324EN0 |
| 9.2 | Housing | 01153EN0 |
| 9.3 | Ball rod | 45264000 |
| 10 | Joint rod | 06085000 |
| 11 | Spray faceplate | 02664EN0 |
| 12 | Flexible connection hose | 45704000 |
| 13 | Vacuum breaker | 45852EN0 |
| 13.1 | Shank mounting kit | 45855000 |
| 13.2 | Non-return valve | 08565000 |
| 13.3 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 14 | Connection hose, 300 mm | 28935000 |
| 15 | Handle Atrio Ypsilon | 45603EN0* |
| 16 | Handle Jota | 45609EN0* |
| 17 | Coupling nut 1/2" | 1290100M* |
