Atrio Three-hole basin mixer 1/2″ S-Size

Product Number
20072EN3
EAN
4005176455636
Colour
brushed nickel

Product Description

  • GROHE Water Saving mousseur 5.7 l/min
  • GROHE Long-Life finish
  • GROHE SilkMove ceramic cartridge
  • less handles – order (18 026) or (18 027) (sold separately)
  • 4.5 l/min

Technical Information

CAD Data

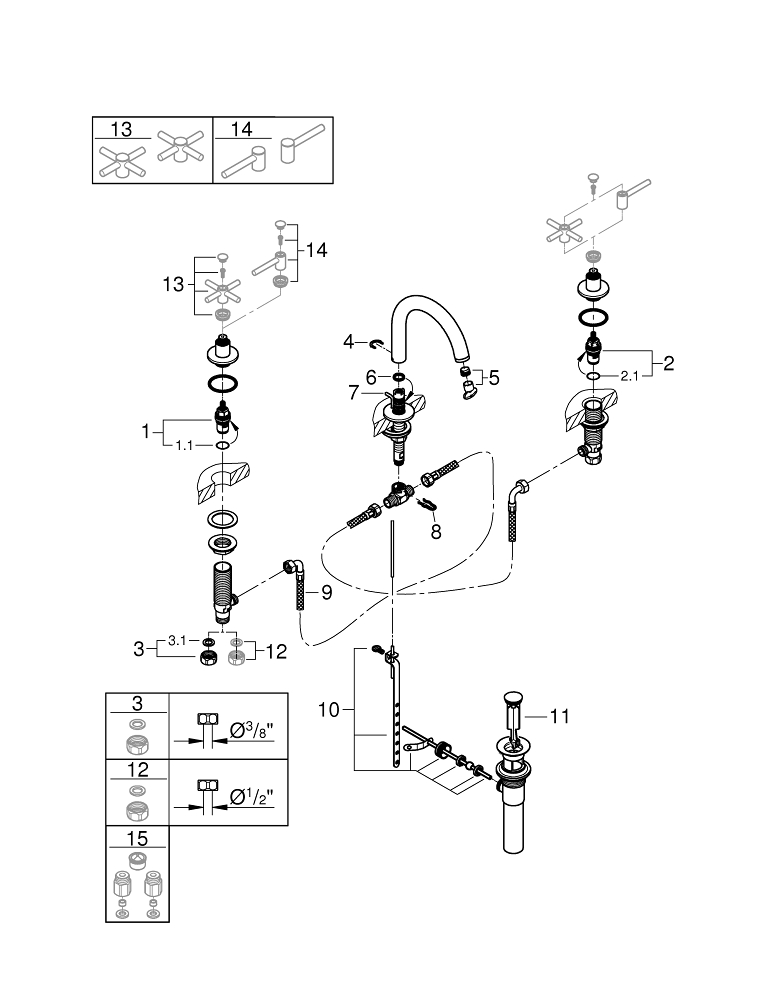

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Ceramic headpart 1/2" 45882000
2 Ceramic headpart 1/2" 45883000
3 Coupling nut 1/2" 1290100M*
4 Safety ring 4826600M
5 Laminar flow straightener 48410000
6 Sealing washer 0128500M
7 Pop-up rod 65196EN0
8 Fixing clamp 6554100M
9 Flexible connection hose 45704000
10 Ball rod 48332000
12 Coupling nut 1/2" x 14.5 mm 1290200M*
13 Cross handles 18026EN3*
14 Lever handles 18027EN3*
15 Water saving set 48189000*
