Atrio Single-lever bath mixer 1/2″ floor mounted
Product Number
32135002
EAN
4005176890192
Colour
chrome
Product main features
- without roughing-in set
- GROHE Long-Life finish
- GROHE SilkMove 46 mm ceramic cartridge
- adjustable flow rate limiter
- swivel tubular 7° spout with mousseur
- projection 301 mm
- stop limiter
- diverter bath/shower
- integrated non-return valve in the shower outlet 1/2"
- with shower holder
- Sena hand shower (28 034)
- shower hose 1500 mm
- protected against backflow
- for use with:
- 45 984
- replaces 32 135 001
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

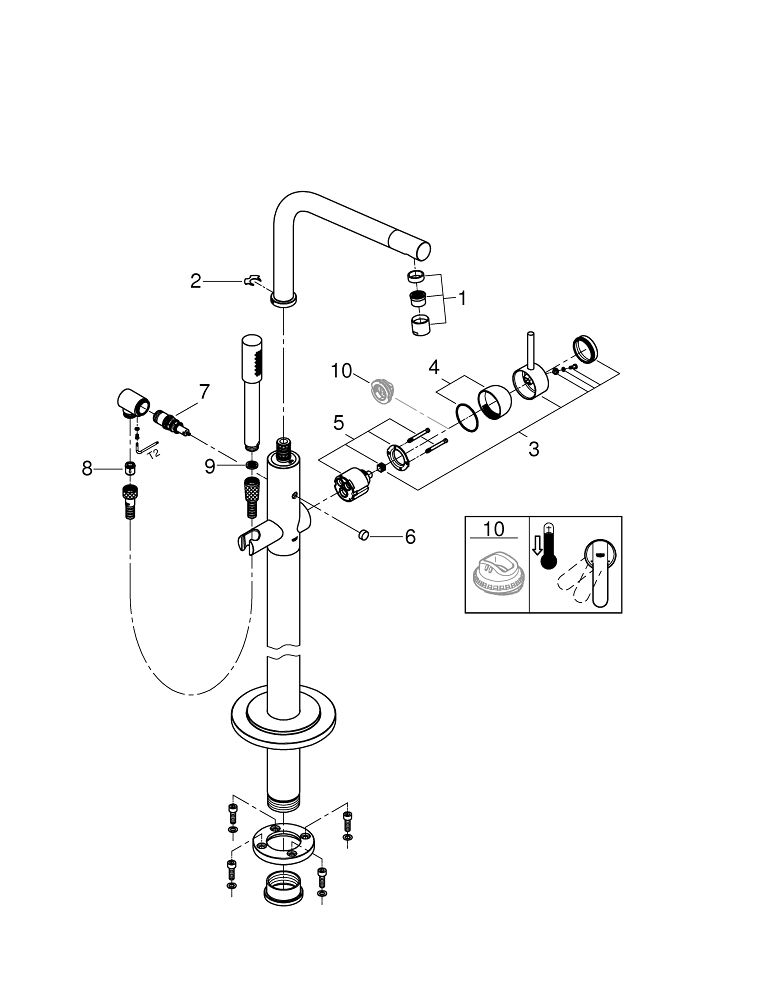

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Sistra | 07899000 |
| 2 | Safety disc | 6417500M |
| 3 | Lever | 46634000 |
| 4 | Cap | 46242000 |
| 5 | Cartridge | 46048000 |
| 6 | Diverter knob | 64989000 |
| 7 | Diverter | 65655000 |
| 8 | Non-return valve | 08565000 |
| 9 | Dirt strainer | 0700200M |
| 10 | Temperature limiter | 46308000* |
