Atrio 4-way diverter

Product Description

• set for final installation (for 29 707)
• without concealed body
• GROHE Long-Life Shine durable sparkling sheen
• escutcheon with wall sealing
• screwable
• with Jota handle

Technical Information

• Dimensional Drawing

CAD Data

• 2D DWG-Data
• 2D DXF-Data
• 3D DXF-Data

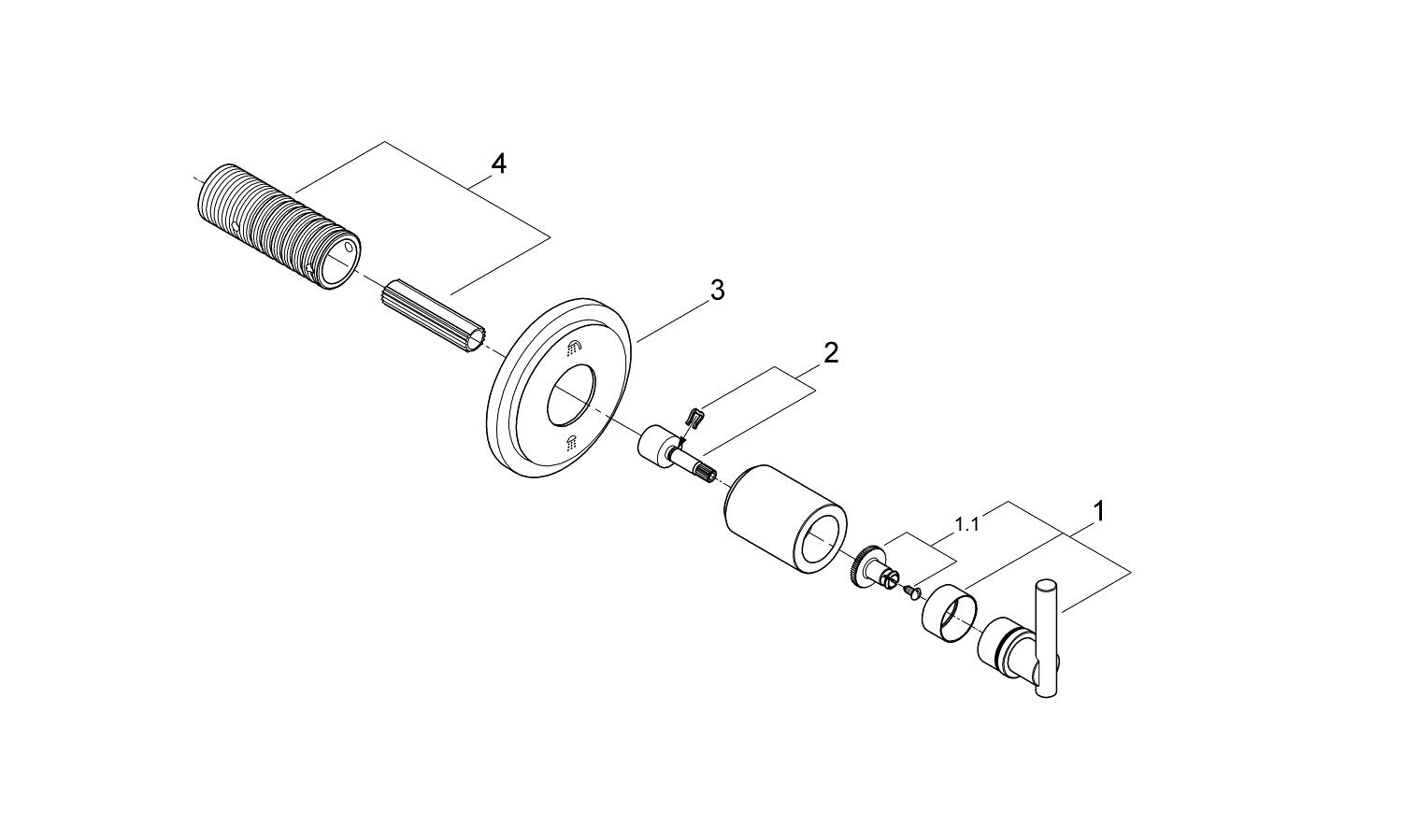

Spare Parts

Pos.-nr.	Prod. description	Order-nr.
1	Handle Jota	45609000
1.1	Replacement handle connection kit	45605000
2	Extension for spindle	45611000
3	Escutcheon	45908000
4	Extension	45439000
