Allure Three-hole basin mixer 1/2″ M-Size
Product Number
20191000
EAN
4005176875762
Colour
chrome
Product main features
- with lever handles
- separate escutcheons made of metal
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- spout with mousseur
- pressure-proof flexible connection hoses between spout and side valves
- pop-up waste set 1 1/4"
- flow limiter 8 l/min
Technical Product Information
CAD Data

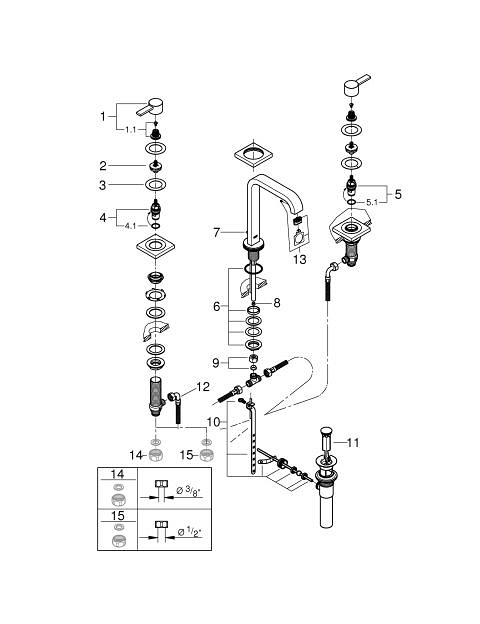

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Handle | 48043000 |
| 1.1 | Replacement handle connection kit | 45186000 |
| 1.1.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 2 | Extension for spindle | 48045000 |
| 3 | Sealing washer | 48047000 |
| 4 | Ceramic headpart 1/2" | 45882000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Ceramic headpart 1/2" | 45883000 |
| 5.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 6 | Counter screws M28 x 1.5 | 45025000 |
| 7 | Pop-up rod | 65196000 |
| 8 | Flow limiter | 46324000 |
| 9 | Compression union 3/8" | 12914000 |
| 11 | Plug | 48331000 |
| 11 | Ball rod | 48332000 |
| 12 | Flexible connection hose | 45704000 |
| 13 | Mousseur | 13220000 |
| 14 | Coupling nut 1/2" | 1290100M* |
| 15 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
