Allure Single-lever mixer with 2-way diverter
Product Number
24070000
EAN
4005176465895
Colour
chrome
Tactile control to effortlessly switch between 2 shower or bath functions: the GROHE Allure single-lever mixer trim set
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 600/35 604)
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- metal lever
- automatic 2-way diverter
- flow performance: outlet B = 27 l/min, outlet C = 27 l/min
- without roughing-in set
Technical Product Information
CAD Data

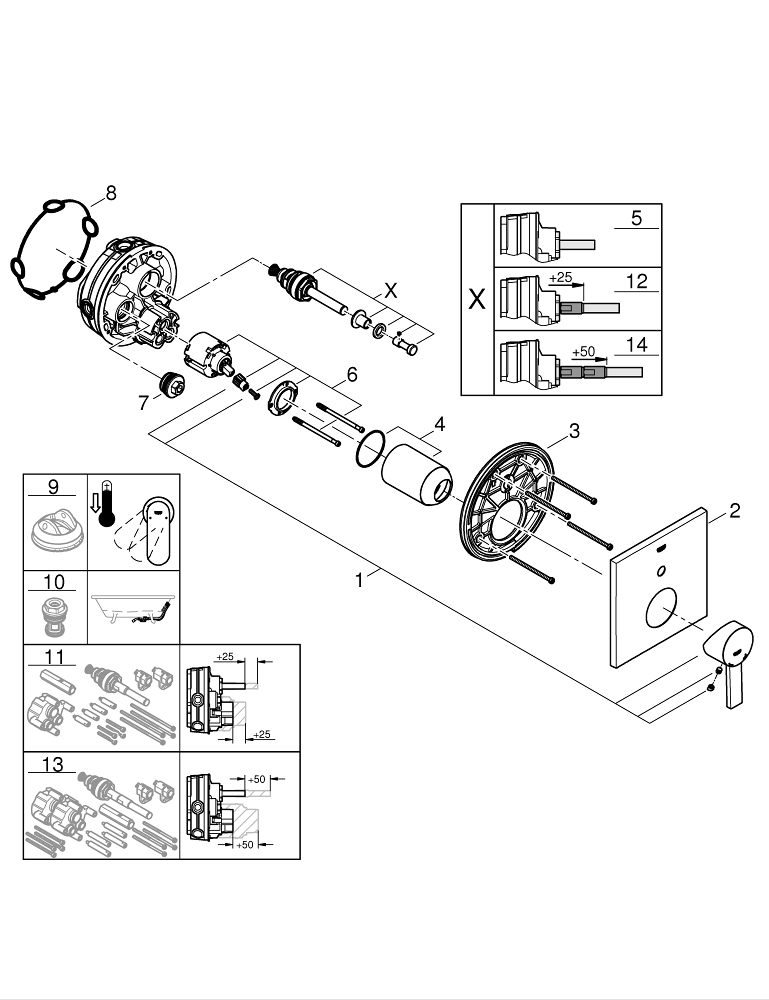

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46609000 |
| 2 | Escutcheon | 48435000 |
| 3 | Mounting plate | 48440000 |
| 4 | Cap | 09038000 |
| 5 | Diverter | 48442000 |
| 6 | Cartridge | 46048000 |
| 7 | Non-return valve | 49085000 |
| 8 | Seal | 48360000 |
| 9 | Temperature limiter | 46375000* |
| 10 | Backflow protection combination (EN1717) | 14055000* |
| 11 | Universal extension set single-lever mixers, 25 mm | 14056000* |
| 12 | Diverter | 48444000* |
| 13 | Universal extension set single-lever mixers, 50 mm | 14057000* |
| 14 | Diverter | 48445000* |
