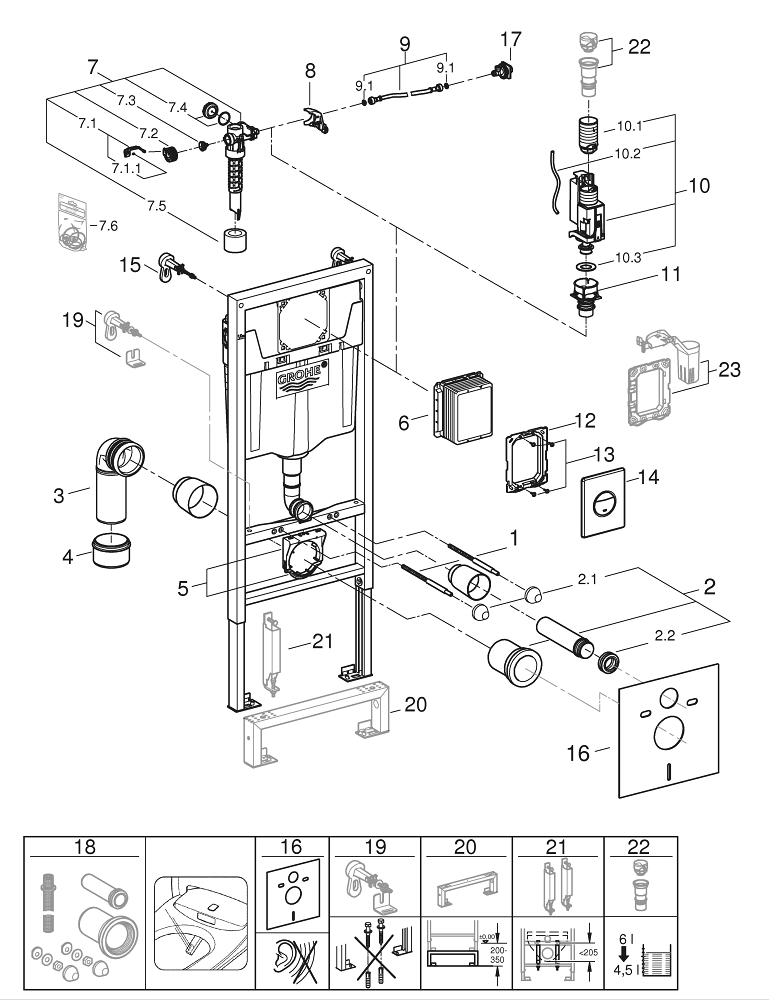

| 1 | Threaded bolt | 4276400M
|
| 2 | WC inlet and outlet connecting set | 37311K00
|
| 2.1 | Basin fastening | 43511SH0
|
| 2.2 | Connector | 37119000
|
| 3 | PP-outlet bend Ø 90 mm | 42327000
|
| 4 | Reducer | 42242000
|
| 5 | Support for outlet bend | 42243000
|
| 6 | Inspection shaft | 66791000
|
| 7 | Filling valve | 37095000
|
| 7.1 | Lever | 43734000
|
| 7.1.1 | Seal | 4377000M
|
| 7.2 | Valve head | 43536000
|
| 7.3 | Membrane | 4375800M
|
| 7.4 | Screw cap | 43735000
|
| 7.5 | Valve float, 5 pcs. | 4379100M
|
| 7.6 | Set of seals | 43722000*
|
| 8 | Support device | 42246000
|
| 9 | Connecting hose | 42233000
|
| 9.1 | Sealing washer | 0319100M
|
| 10 | Dual Flush discharge valve AV1 | 42320000
|
| 10.1 | Extension for overflow pipe | 42313000
|
| 10.2 | Pneumatic hose | 42319000
|
| 10.3 | Seal | 42310000
|
| 11 | Valve seat for GD2 | 42315000
|
| 12 | Mounting frame | 43207000
|
| 13 | Screw | 6636200M
|
| 14 | Top plate with push button | 42375000
|
| 15 | Wall brackets | 3855800M
|
| 16 | Set for noise protection | 37131000
|
| 17 | Water connection | 48561000
|
| 18 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000*
|
| 19 | Xtra wall brackets, flexible placing | 38733000*
|
| 20 | Extension | 38629000*
|
| 21 | Accessory | 38779000*
|
| 22 | 4.5 l adapter for GD2 | 42333000*
|
| 23 | Retrofit set | 38796000*
|
chrome
