Euphoria System Shower system with single lever bath mixer for wall mounting
Product Number
26322000
EAN
4005176325892
Colour
![chrome](http://cdn.cloud.grohe.com/Web/colour_plates/36x36/000.png)
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed single-lever bath mixer with diverter handle
- separate diverter for hand shower
- gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE Long-Life finish
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
- min. recommended pressure 1.0 bar
- head and hand shower must be ordered separately
Technical Product Information
CAD Data

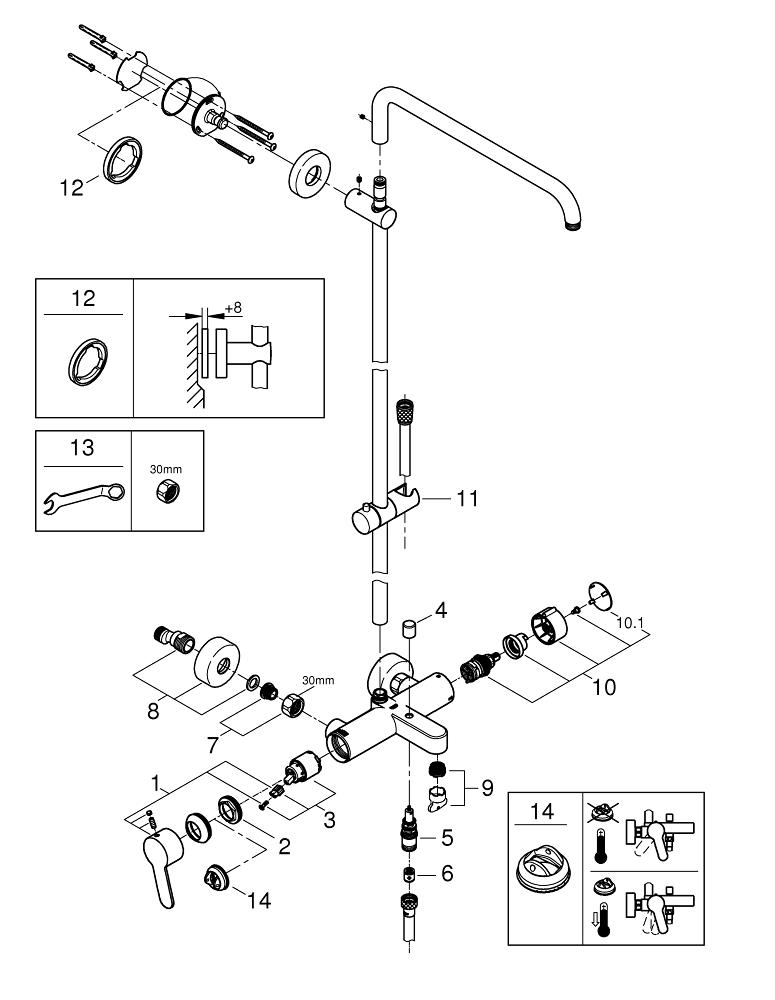

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Lever | 46750000 |
2 | Screw coupling | 46460000 |
3 | Cartridge | 46374000 |
4 | Diverter knob | 64309000 |
5 | Diverter | 65655000 |
6 | Non-return valve | 08565000 |
7 | Shank mounting kit | 45004000 |
8 | S-union | 12662000 |
9 | Mousseur | 13926000 |
10 | Diverter | 46921000 |
10.1 | Cover cap | 4788300M |
11 | Glide element | 12140000 |
12 | Compensation disc | 27180000* |
13 | Special spanner | 19377000* |
14 | Temperature limiter | 46375000* |
